Description

Console system for radiology, cardiology and women's health

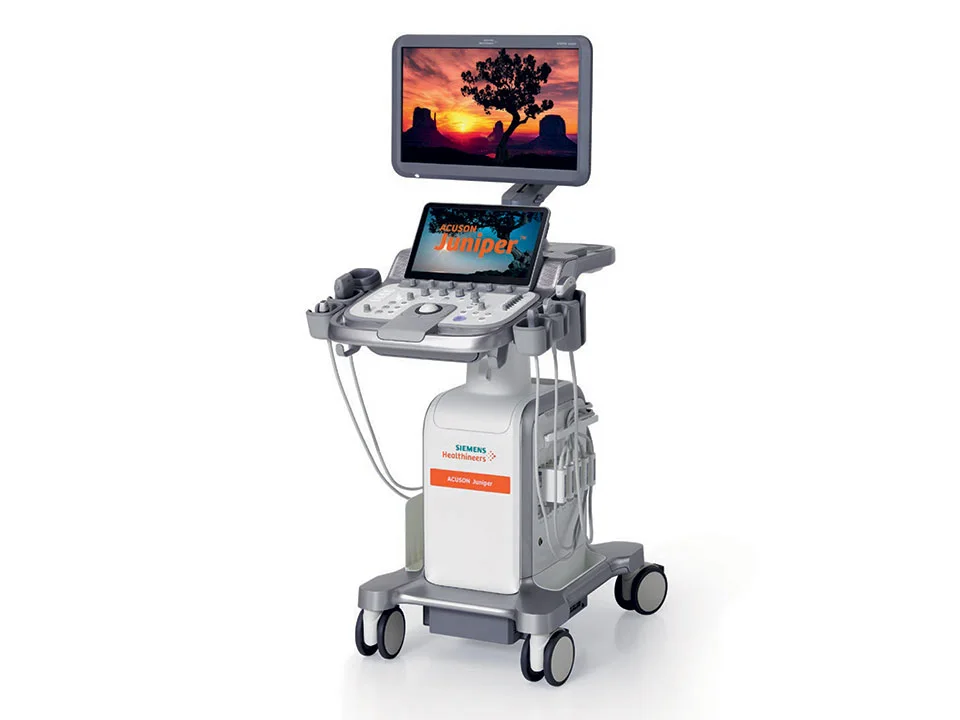

The ACUSON Juniper is an upper mid-range cart-based ultrasound system for hospitals and practices with varied examination areas. It covers abdominal, vascular, cardiac, small parts as well as obstetrics and gynaecology and, depending on configuration, offers elastography, contrast and 4D imaging.

Features & equipment

Wide probe range

Probes from 1 to 18 MHz, including single-crystal transducers for deep structures and high-frequency linear probes for superficial anatomy.

One system, many specialties

Abdominal, vascular, cardiac incl. TEE, small parts, musculoskeletal as well as obstetrics and gynaecology with volume probes.

Liver, heart, 4D

Depending on configuration: pSWE and UDFF for the liver, strain elastography, contrast-enhanced ultrasound, VVI strain analysis and fourSight 4D.

Automatic measurement tools

Depending on configuration: AI-assisted measurements such as eSie Measure, eSie Left Heart, Auto OB and Auto Follicle, plus protocols for routine examinations.

Large touchscreen

13.3″ touch panel, rotating and height-adjustable control panel and battery operation of up to 75 minutes for moving between rooms.

Five active probe ports

Five probe connectors plus a CW pencil probe port; wireless data transfer and worklist connectivity for integration into the practice network.

Product images and descriptions are for illustration purposes and may show optional equipment. Errors excepted; subject to change and technical modifications.

Manufacturer	Siemens
Model	ACUSON Juniper
Year of manufacture	on request
Condition	Demo system
Form factor	Cart-based console
Probe ports	5 + CW pencil
Applications	General & internal medicine, Obstetrics & gynaecology, Cardiology
Probes	23 compatible probes (see “Probes” tab)
Monitor	21.5″ or 23.6″ LED (depending on version)
Touchscreen	13.3″
Imaging modes	B (incl. harmonic), M, anatomical M, colour Doppler, power Doppler, PW (incl. HPRF, tissue Doppler), CW, 3D/4D (optional)
Weight	approx. 76 kg
Dimensions (W × D × H)	50.8 × 65.4 × 122.5–163.4 cm
Battery	Battery support, up to approx. 75 min scanning
Connectivity	DICOM 3.0 (Worklist, MPPS, Storage Commitment, Print, Query/Retrieve, SR) depending on configuration, USB, CD/DVD, wireless data transfer
Market launch	2018

Errors and changes excepted.

Questions about the configuration?

We advise you on probes, software licences and accessories.

Ask a question

Probe type

Application

Tip: click probes to add them straight to your enquiry.

Details

Note: whether a probe can be used with a specific system depends on factors such as its configuration, software version, hardware revision and year of manufacture. Information without guarantee; errors and changes excepted.

Open the probe catalogue

Delivery

We deliver only to businesses, companies, self-employed professionals or public institutions (B2B).

Scope of delivery

The actual scope of delivery depends on the quote or order configuration. Software licences and optional software features, probes as well as accessories and peripherals – e.g. carts/trolleys, holders, cables, adapters, printers and transport solutions – are not included and are available separately.

Service & maintenance

We are there for you after the purchase, too, and support you with service and maintenance for your system – just get in touch.

Leasing & financing

On request, we arrange attractive leasing or financing offers through renowned financial service providers – tailored to your budget and plans.

Questions about this item?

Call or write to us – we will advise you personally.
