Consona N6 – SonoMedical GmbH

Description

Mid-range cart-based system for practices and hospitals

The Consona N6 is a cart-based ultrasound system for general practice, internal medicine, cardiology and women's health. It is based on the ZST+ platform and supports convex, linear, sector, endocavitary, biplane and 4D volume probes; the feature set depends on configuration.

Features & equipment

Channel-data processing

The ZST+ platform computes with channel data; plus harmonic imaging (PSH), iBeam, iClear and Glazing Flow for vascular imaging.

Broad range of specialties

Abdominal, obstetrics, gynaecology, cardiac, small parts, urology, vascular, paediatrics, nerve, emergency and pelvic floor.

From elastography to 4D

Depending on configuration: strain elastography, contrast-enhanced ultrasound, tissue Doppler, stress echo, Tissue Tracking, Smart 3D and iLive 4D.

Protocols and auto measurement

Depending on configuration: iWorks protocols, Smart Calc, Smart Bladder, Smart OB, AutoEF and R-IMT to shorten routine workflows.

13.3″ touchscreen

Low-glare Full HD touchscreen, operable with gloves; swivelling control panel and waterproof keyboard.

DICOM and Wi-Fi

Three or four active ports plus CW pencil port; DICOM with Worklist, MPPS, Query/Retrieve and Wi-Fi depending on configuration.

Product images and descriptions are for illustration purposes and may show optional equipment. Errors excepted; subject to change and technical modifications.

Manufacturer	Mindray
Model	Consona N6
Year of manufacture	on request
Condition	Demo system
Form factor	Cart-based console
Probe ports	3–4 + CW pencil
Applications	General & internal medicine, Obstetrics & gynaecology, Cardiology
Probes	11 compatible probes (see “Probes” tab)
Monitor	21.5″ LED, Full HD
Touchscreen	13.3″, Full HD
Imaging modes	B, M, colour M, colour Doppler, power Doppler/directional, PW, CW, Free Xros M, tissue Doppler (optional), contrast (optional), 3D/4D (optional)
Weight	approx. 65 kg (standard configuration)
Dimensions (W × D × H)	51.3 × 74–84 × 99.4–150 cm (depending on control panel position)
Battery	optional, approx. 60 min scanning
Connectivity	DICOM (Worklist, MPPS, Q/R, SR), Wi-Fi (optional), LAN

Errors and changes excepted.

Questions about the configuration?

We advise you on probes, software licences and accessories.

Ask a question

Probe type

Application

Tip: click probes to add them straight to your enquiry.

Details

Note: whether a probe can be used with a specific system depends on factors such as its configuration, software version, hardware revision and year of manufacture. Information without guarantee; errors and changes excepted.

Open the probe catalogue

Delivery

We deliver only to businesses, companies, self-employed professionals or public institutions (B2B).

Scope of delivery

The actual scope of delivery depends on the quote or order configuration. Software licences and optional software features, probes as well as accessories and peripherals – e.g. carts/trolleys, holders, cables, adapters, printers and transport solutions – are not included and are available separately.

Service & maintenance

We are there for you after the purchase, too, and support you with service and maintenance for your system – just get in touch.

Leasing & financing

On request, we arrange attractive leasing or financing offers through renowned financial service providers – tailored to your budget and plans.

Questions about this item?

Call or write to us – we will advise you personally.

Ask a question

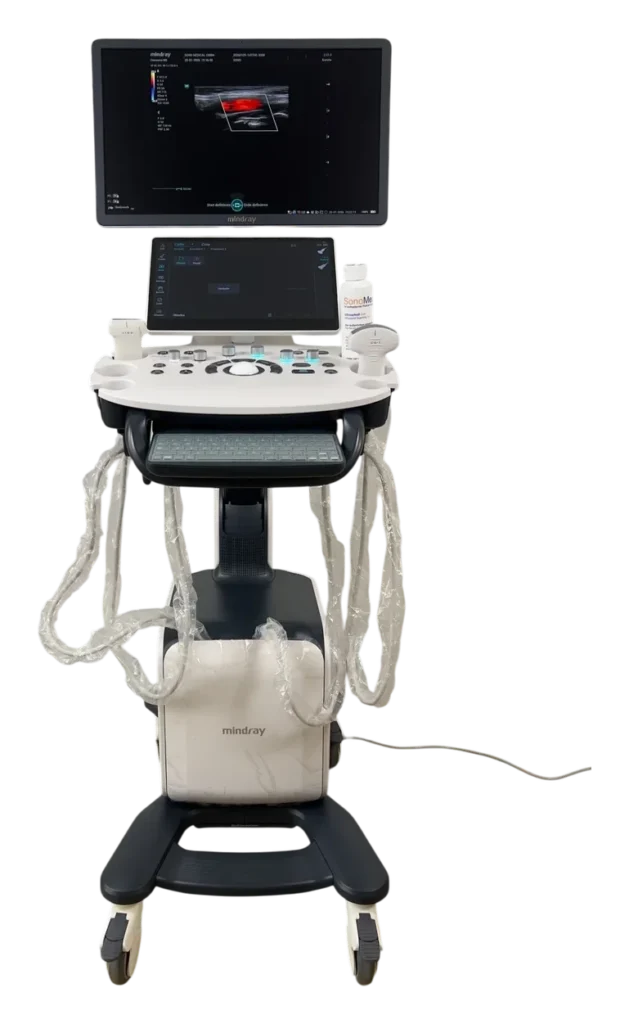

Mindray Consona N6
