Vivid T9 – SonoMedical GmbH

Description

Compact cardiology system for echo, vascular and abdominal imaging

The Vivid T9 is a space-saving console of the Vivid series for transthoracic and transoesophageal echocardiography. With RS probes for vascular, abdominal and gynaecological imaging, it is also suited to shared use across several specialties in practice and hospital.

Features & equipment

Cardiac imaging

2D, colour Doppler and tissue Doppler as well as PW/CW Doppler; depending on configuration with the XDclear matrix probe M5Sc-RS for challenging imaging conditions.

Echo, vascular, abdominal

Adult and paediatric cardiology including TEE, plus vascular, abdominal, small parts, musculoskeletal, urology, gynaecology and lung.

Strain and stress echo

Depending on configuration: AFI strain analysis, Auto EF, stress echo, tissue synchronisation, LVO contrast, B-Flow and strain elastography.

AI-assisted measurements

Depending on software version, assistant functions automatically measure 2D distances and Doppler spectra; Scan Coach shows reference views.

Touchscreen and articulating arm

Large HD monitor on an articulating arm, 10.1″ touchscreen and height-adjustable control panel; Smart Standby retains the system state when relocating.

Four active RS ports

Sector, TEE, linear, convex, endocavity and CW pencil probes; DICOM optional, LAN, USB, raw data transfer to EchoPAC.

Product images and descriptions are for illustration purposes and may show optional equipment. Errors excepted; subject to change and technical modifications.

Manufacturer	GE HealthCare
Model	Vivid T9
Year of manufacture	2020
Condition	Refurbished
Form factor	Cart-based console
Probe ports	4 active probe ports
Applications	Cardiology, General & internal medicine, Obstetrics & gynaecology
Probes	18 compatible probes (see “Probes” tab)
Monitor	21.5″ HD LCD, 1920 × 1080 (data sheet 2018)
Touchscreen	10.1″ multi-touch colour LCD
Imaging modes	2D, M-mode including anatomical M-mode, colour Doppler, Angio-Flow, PW (including HPRF), CW, tissue Doppler (TVI)
Weight	approx. 60 kg
Dimensions (W × D × H)	59 × 81 × 140.5–177.5 cm (data sheet 2018)
Connectivity	DICOM 3.0 (optional), Ethernet, USB, HDMI (from 2020 hardware update), InSite remote service
Software packages	stress echo / SmartStress (optional), AFI strain analysis (optional), Auto EF (optional), Tissue Tracking, TSI, Strain/Strain Rate (optional), LVO contrast (optional), B-Flow and Blood Flow Imaging (optional), IMT measurement (optional), strain elastography (optional), DICOM connectivity and Structured Reporting (optional), Smart Standby (optional)

Errors and changes excepted.

Questions about the configuration?

We advise you on probes, software licences and accessories.

Ask a question

Probe type

Application

Tip: click probes to add them straight to your enquiry.

Details

Note: whether a probe can be used with a specific system depends on factors such as its configuration, software version, hardware revision and year of manufacture. Information without guarantee; errors and changes excepted.

Open the probe catalogue

Delivery

We deliver only to businesses, companies, self-employed professionals or public institutions (B2B).

Scope of delivery

The actual scope of delivery depends on the quote or order configuration. Software licences and optional software features, probes as well as accessories and peripherals – e.g. carts/trolleys, holders, cables, adapters, printers and transport solutions – are not included and are available separately.

Service & maintenance

We are there for you after the purchase, too, and support you with service and maintenance for your system – just get in touch.

Leasing & financing

On request, we arrange attractive leasing or financing offers through renowned financial service providers – tailored to your budget and plans.

Questions about this item?

Call or write to us – we will advise you personally.

Ask a question

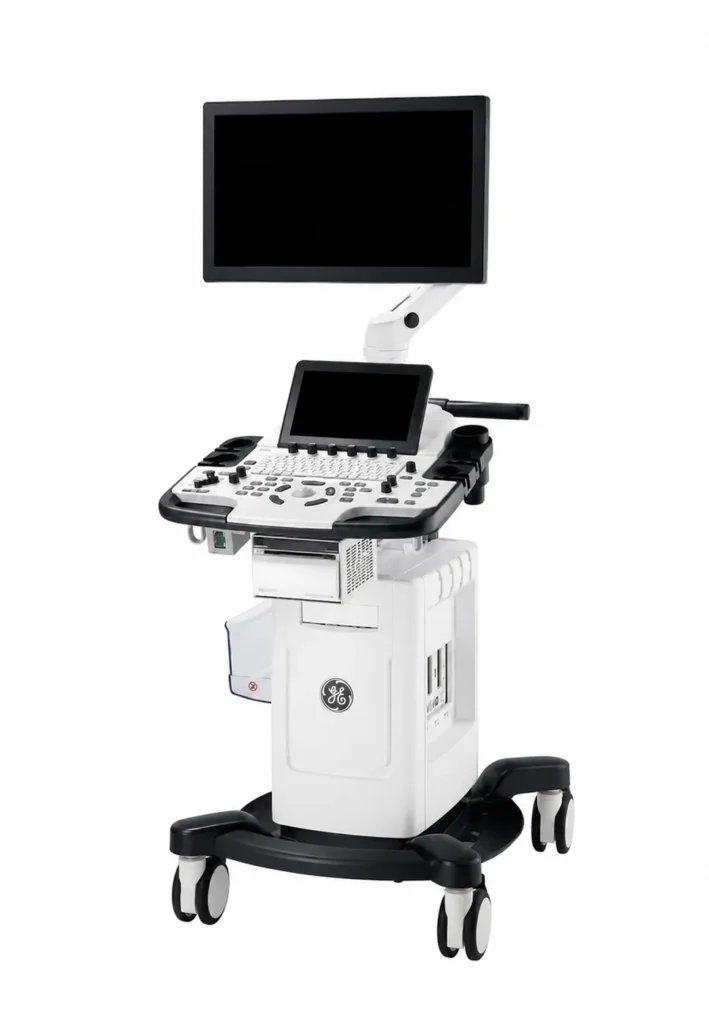

GE Vivid T9
